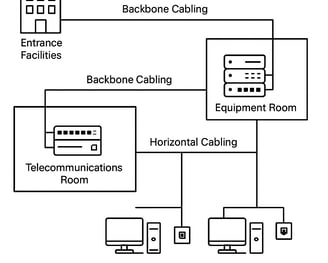

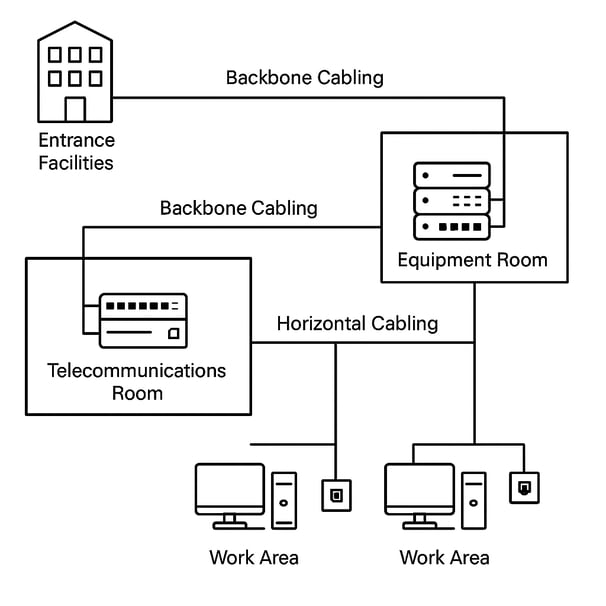

Key Components of Structured Cabling:
1.Entrance Facilities (EF):
The point where external service provider lines enter the building.
2.Equipment Room (ER):
Central location for network equipment like servers, switches, and patch panels.
3.Telecommunications Room (TR):
Houses the connection between horizontal cabling and the backbone cabling. Also called wiring closets or telecom rooms.
4.Backbone Cabling:
Interconnects different areas of the building, such as ERs and TRs.
Can be fiber optic or copper cables.
5.Horizontal Cabling:
Connects TRs to individual workstations or outlets on the same floor.
6.Work Area:
Includes user devices, cables, and outlets that connect end devices to the horizontal cabling.
