CCTV & Access Control System

• SOLUTIONS •

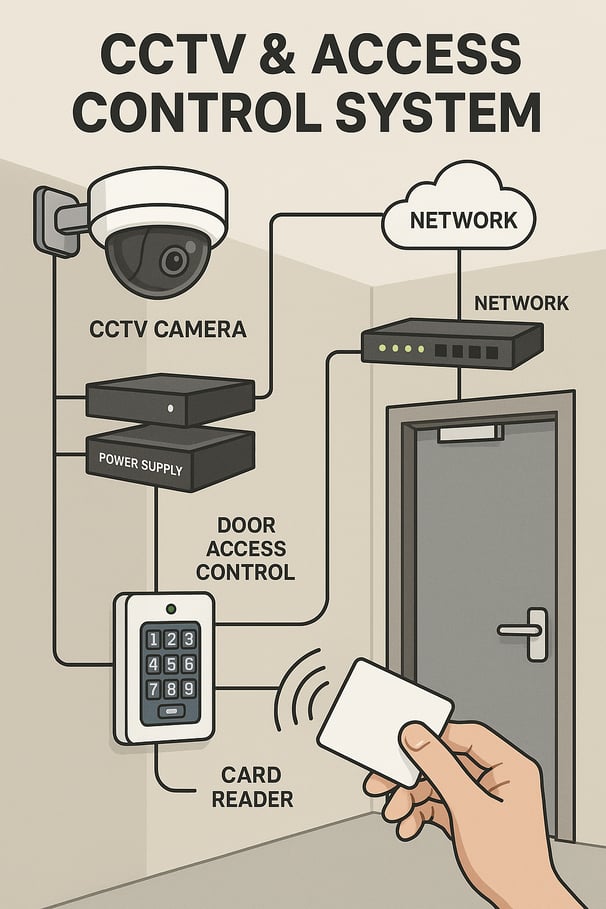

System Components: CCTV System

  • Cameras (IP/Analog): Capture video footage. Placed at strategic locations (entrances, corridors, lobbies).

  • NVR/DVR: Network Video Recorder (for IP) or Digital Video Recorder (for Analog) to store and manage video.

  • Monitor: For real-time viewing and playback.

  • PoE Switch or Power Supply: Powers cameras and transmits data (PoE for IP cameras).

  • Cables (CAT6/Coaxial): For power and video/data transmission.

  • Router: For network connectivity and remote access.

Access Control System

  • Access Control Panel: Central controller that manages access permissions.

  • Card Readers/Biometrics/Keypads: Installed at entry points for authentication.

  • Electronic Door Locks: Releases/locks doors based on authentication.

  • Exit Button / Request-to-Exit Sensor (REX): Allows exit without credential.

  • Power Supply & Battery Backup: Ensures continuous operation.

  • Management Software: Used to configure user access levels and view logs.

Integration

  • CCTV footage can be linked to Access Control events (e.g., record when a door is accessed).

  • Alerts can be generated for unauthorized access attempts with video footage.

A CCTV (Closed-Circuit Television) and Access Control system is a security solution used to monitor and control access to a facility or premises. It is commonly installed in commercial buildings, schools, offices, and industrial environments to enhance security and safety.
